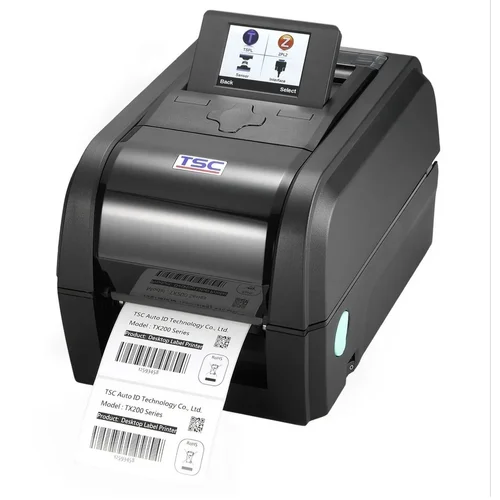

The TX Series of thermal transfer desktop barcodes can support a variety of printing applications to meet your needs. With three models available, the 4-inch wide TX Series can address everything from higher volume 4×6 shipping labels, higher resolution product marking and graphic solutions, to high-resolution labels used in electronics marking applications.
Models in the TX Series include:
TX200 – 203 dpi resolution with print speeds up to 8 ips
TX300 – 300 dpi resolution with print speeds up to 6 ips
TX600 – 600dpi printer featuring precise calibration and registration required for printing the smallest labels
| Feature | TX210 | TX310 | TX610 |
|---|---|---|---|
| Model | |||
| Resolution | 8 dots/mm (203 DPI) | 12 dots/mm (300 DPI) | 24 dots/mm (600 DPI) |
| Printing Method | Thermal Transfer and Direct Thermal | Thermal Transfer and Direct Thermal | Thermal Transfer and Direct Thermal |
| Max. Print Speed | 203 mm (8”)/second | 152 mm (6”)/second | 102 mm (4”)/second |
| Max. Print Width | 108 mm (4.25“) | 106 mm (4.17“) | 106 mm (4.17“) |
| Max. Print Length | 25,400 mm (1000”) | 11,430 mm (450”) | 2540 mm (100”) |
| Enclosure | Clamshell with double-walled plastic | ||
| Physical Dimension | 226 mm (W) x 198 mm (H) x 332 mm (D) | 8.90“ (W) x 7.80“ (H) x 13.07“ (D) | 226 mm (W) x 200 mm (H) x 332 mm (D) |
| Weight | 3.75 kg (8.27 lbs.) | 4.08 kg ( 8.99 lbs) | |
| Label Roll Capacity | 127 mm (5“) OD | ||
| Ribbon | 300 m long, max. OD 67 mm, 1“ core (ink coated outside) | ||
| Ribbon Width | 40 mm ~ 110 mm (1.6” ~ 4.3”) | ||
| Processor | 32-bit RISC CPU | ||
| Memory | 128 MB Flash memory, 128 MB SDRAM, micro SD (up to 32 GB) | ||
| Interface | USB 2.0, RS-232, USB Host, Internal Ethernet (10/100 Mbps), Getronics (factory option), 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (dealer option), MFi Bluetooth 5.0 (factory option) |
