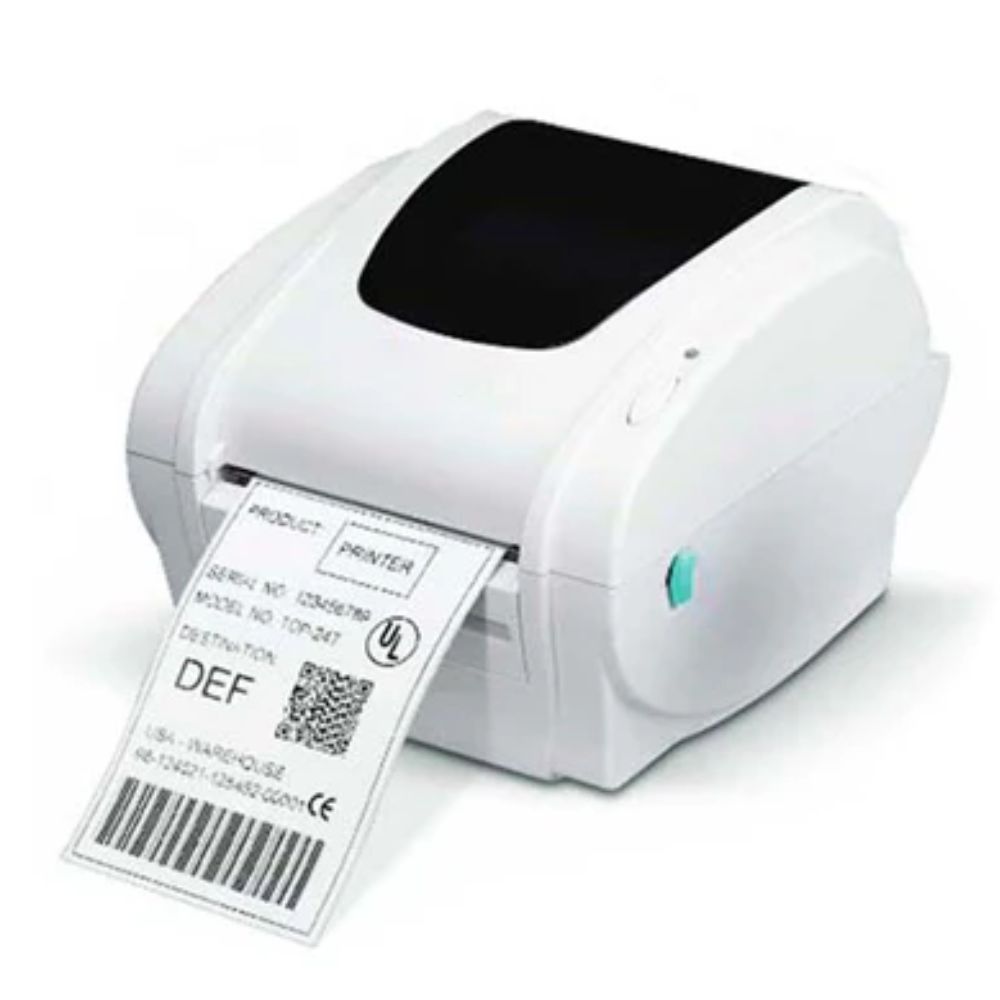

The TDP-247 series direct thermal label printer offers best-in-class speed and high-resolution capabilities, along with a rugged, reliable design that has become the hallmark of the TSC printer family.
The TDP-247 series features two high-speed models – the TDP-247 and TDP-345 – both ideally suited for product marking, shipping, retail and other labeling applications. The TDP-247 can print 4-inch wide 203 dpi labels at speeds up to 7 inches per second. The TDP-345 offers high-resolution 300 dpi printing at speeds up to 5 inches per second. Both models come standard with USB, parallel and serial connections. Other options include an internal Ethernet interface for easy network integration, label cutters, and a keyboard for printing labels in stand-alone or down-time situations.
Because of their compact design, the TDP-247 series printers are ideally suited for a variety of applications, fitting easily into cramped work spaces that are often too small for larger printers. Both models feature a user-friendly clamshell design that allows users to simply open the cover and drop labels into a center-biased storage bay. Top-of-form sensing by gap, black mark, or notch is standard and completely adjustable from side to side.
We at MINDWARE deal in all kinds of TSC Printers for various Business needs. Get the best price for the TSC Printers from Mindware on the number 9810822688 and mail id gm@indianbarcode.com
TECHNICAL SPECIFICATIONS:
| Feature | TDP-345 |
| Resolution | 12 dots/mm (300 DPI) |
| Printing method | Direct Thermal |
| Max. print speed | 127 mm (5”)/second |
| Max. print width | 106 mm (4.17“) |
| Max. print length | 1,016 mm (40“) |
| Enclosure | Double-walled plastic |
| Physical dimension | 200 mm (W) x 164 mm (H) x 240 mm (D) |
| Weight | 1.9 kg (4.19 lbs) |
| Label roll capacity | 127 mm (5“) OD |
| Processor | 32-bit RISC CPU |
| Memory
|
4 MB Flash memory |
| 8 MB SDRAM | |
| SD card reader for Flash memory | |
| expansion, up to 4 GB | |
| Interface
|
USB 2.0 |
| RS-232 | |
| Centronics | |
| Internal Ethernet, 10/100 Mbps | |
| (factory option) | |
| Bluetooth (user option) | |
| Power
|
External universal switching power |
| supply | |
| Input: AC 100-240V, 2.5A, 50-60Hz | |
| Output: DC 24V, 3.75A, 90W |
